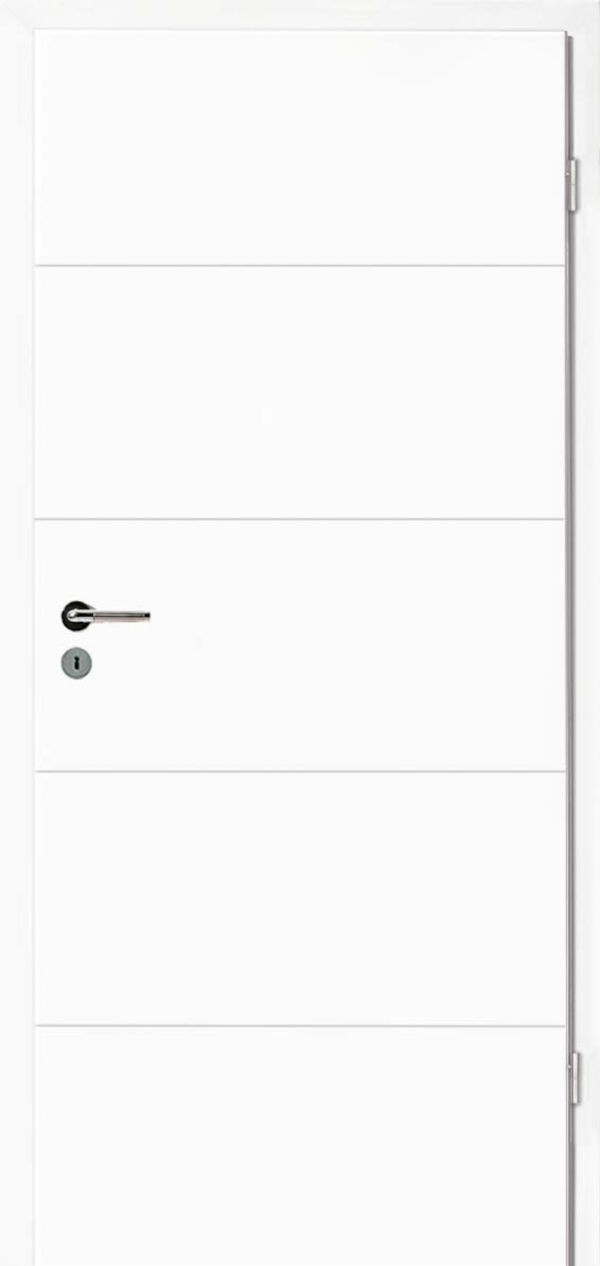

Dyer te Brendshme, Style-door model Gap

Dyer te Brendshme, Gap 1


Gap 1
White lacquer Prime 9010 or 9016

Cmimi i afishuar nuk perfshin kasen (frame), klienti ofertohet bazuar ne trashesine e murit (wall thickness)

Lacquering Mixture or as per RAL/NCS standard colour chart* +140,00 Euro

* Signal and structure lacquers not possible
Door-leaf height 2041mm to 2110mm 1972-2040mm door RSP +15%
Door-leaf height 2111mm to 2235mm 2041-2110mm door RSP +30%
Door-leaf height 2236mm to 2290mm 2041-2110mm door RSP + stabiliser upright +30%
2x 3-parted hinges V0026 WF nickel-plated +10,11 Euro
WC lock (class 1) trap and bar in plastic, 55mm backset, face plate silver-coloured +5,83 Euro
PZ lock (class 3), 55mm backset, face plate silver-coloured +6,45 Euro
Sliding-door leaf incl. shell handle silver-coloured and floor-guiding groove +44,76 Euro
Double-leaf model, door leaf x2 plus +89,78 Euro
DIN LO (160mm moulding upright & top, socket 400mm, incl. glazing beads) +19,78 Euro
Special light opening rectangular according to customer specifications incl. glazing beads, w/o glazing +63,36 Euro
Solid-chipboard core (VSP) +22,07 Euro
Climate cover plate (only for doors w/o light opening); door thickness ~43mm; height max. 2110mm +147,87 Euro
incl.automatic dropseal, installed +43,21 Euro
Gap door leaf with special milling according to customer specification Surcharge per order: +117,37

=> only straight lines in horizontal or vertical; w/o light opening
EdgeDoor-leaf edges squared, rounded or with Premium edge PK2
CoreRSP (tubular chip board) / HDF cover plate
Hinges2x hinges V0020 nickel-plated
LockBB 55 mm backset, class 1, face plate silver-coloured
Lacquer systemS2 = 2-layer spray lacquering
