Dyer te Brendshme, Light

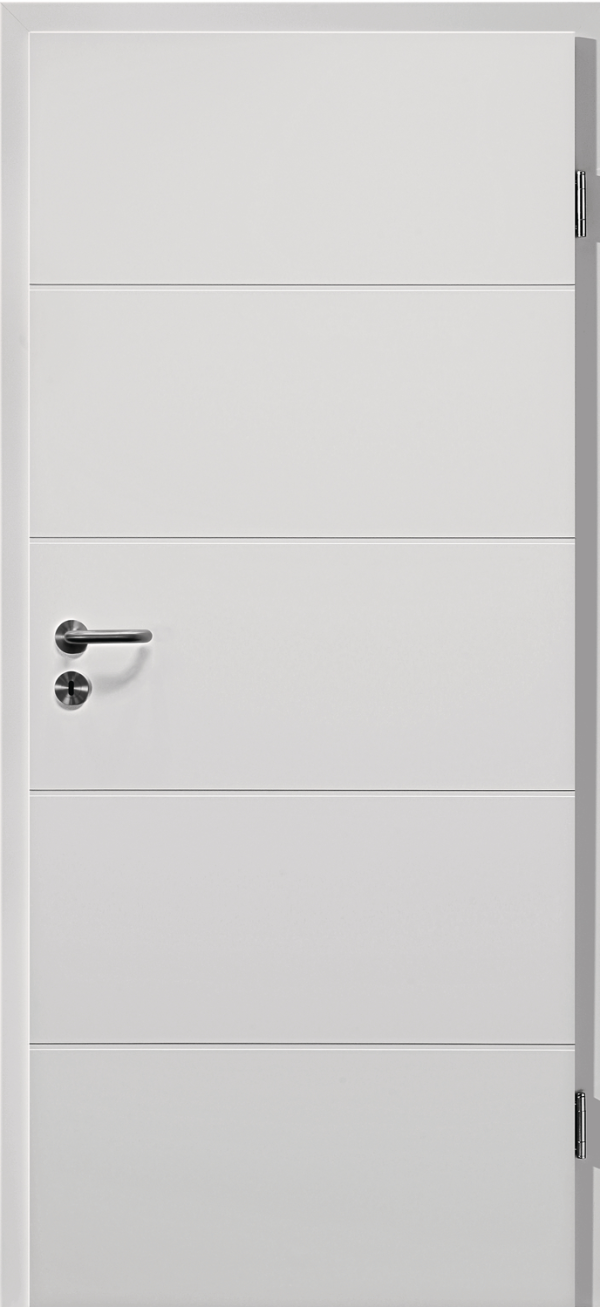

Dyer te Brendshme, Light 1


Light 1
Siperfaqja: White lacquer 9010 or 9016.

Cmimi i afishuar nuk perfshin kasen (frame), klienti ofertohet bazuar ne trashesine e murit (wall thickness)

Tubular-chipboard-strips core (RSS) only available for door leaf size 1972-2110 x 610-985mm - 9,25 Euro

Door-leaf height 2041mm to 2110mm 1972-2040mm door RSP +15%
Solid-chipboard core (VSP) +16,51 Euro
Climate cover plate (only for doors w/o light opening), door thickness approx. 50mm, incl. VSP core +122,62 Euro
2x 3-parted hinges V0026 WF nickel-plated +10,11 Euro
WC lock (class 1) trap and bar in plastic, 55mm backset, face plate silver-coloured +5,83 Euro
PZ lock (class 3), 55mm backset, face plate silver-coloured +6,45 Euro

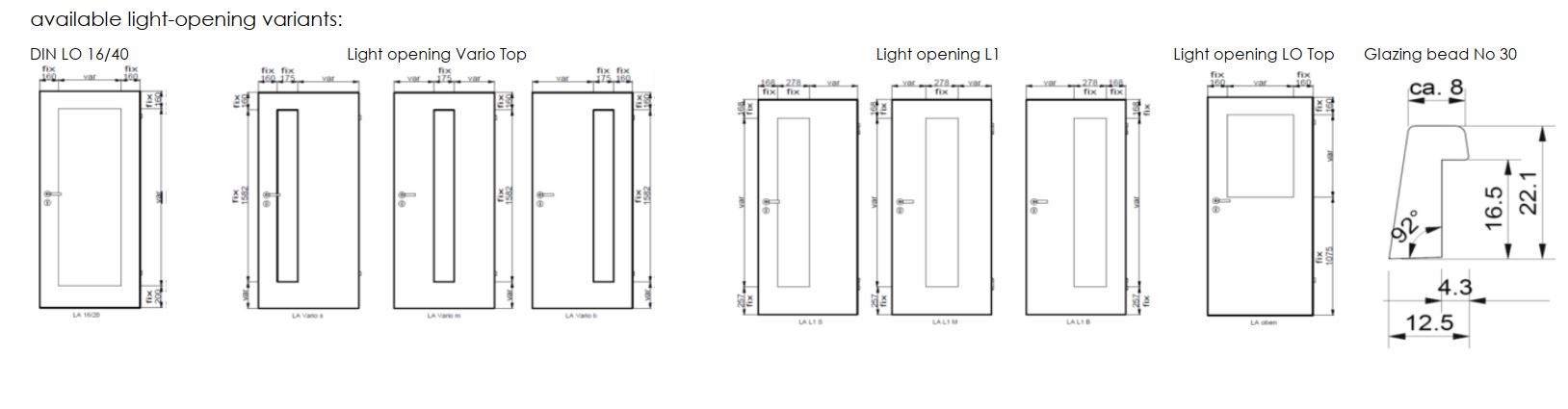

DIN LO (160mm moulding upright & top, socket 400mm, incl. glazing beads) +19,78 Euro
Special light opening rectangular according to customer specifications incl. glazing beads, w/o glazing +63,36 Euro
Sliding-door leaf incl. shell handle silver-coloured and floor-guiding groove, RSP +44,76 Euro
incl.automatic dropseal, installed +43,21 Euro

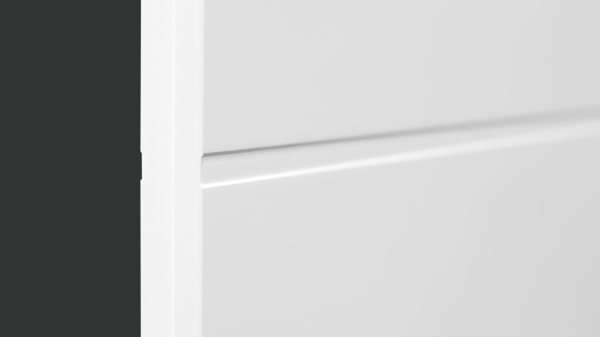

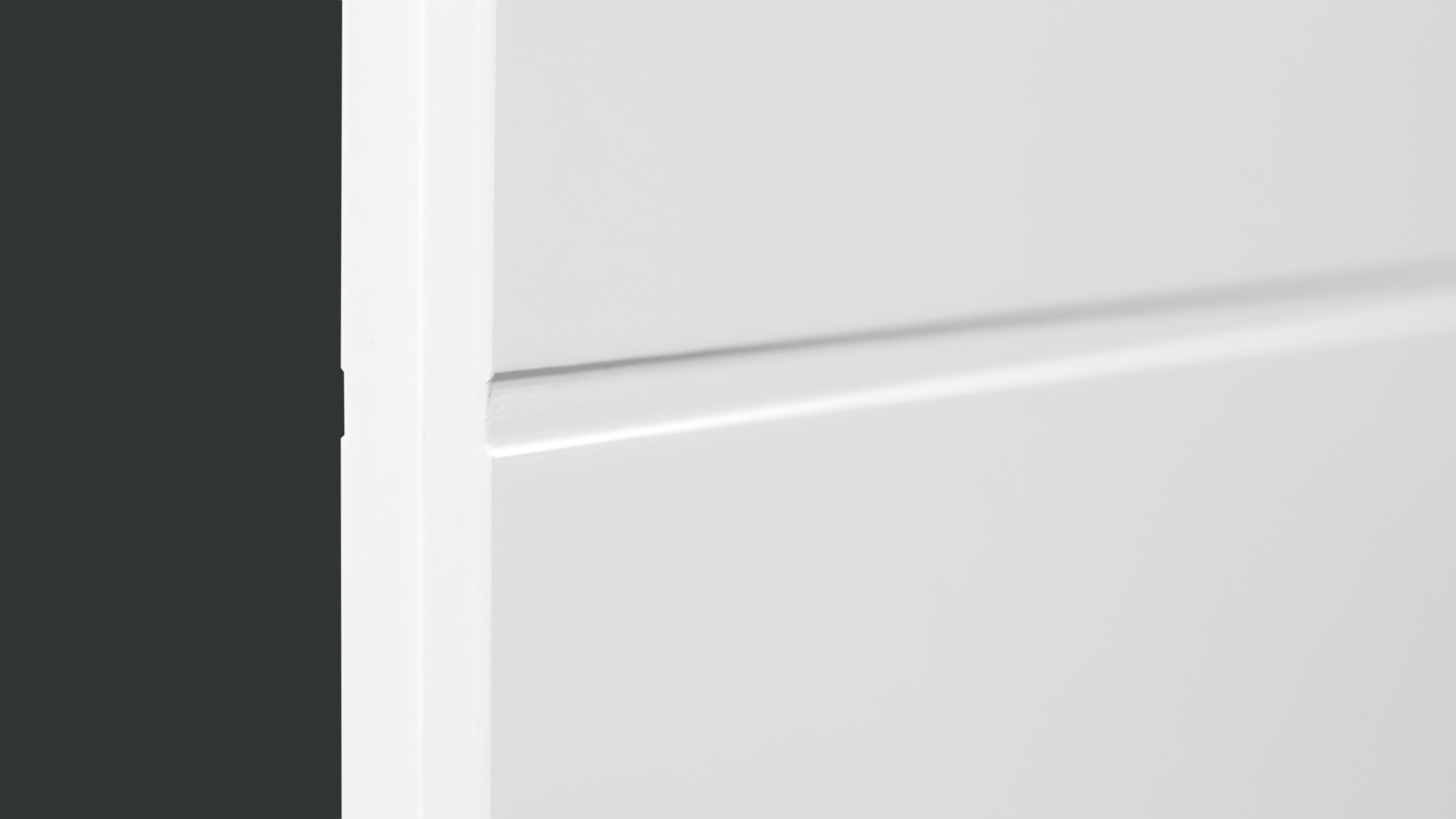

EdgeDoor-leaf edges squared
CoreRSP (tubular chip board) / compression-moulded cover plate
Hinges2x hinges V0020 nickel-plated
LockBB 55 mm backset, class 1, face plate silver-coloured
Lacquer systemWS1 = 2-layer roller/spray lacquering
Special featuresSpecial dimensions possible in height 1860-2110 / width 610-985mm
WarningFurther additional services on request! Due to being a compression-moulded cover plate, the possible model variants are limited! Lacquering according to RAL/NCS not possible!
